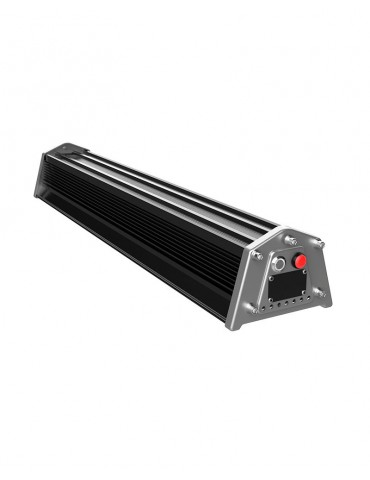

Linear high bay LED with emergency light
Luminaire for corridors that does not leave you without light
The Linear high bay LED with emergency provides a comprehensive lighting solution. It combines the functionality of the conventional LED lighting with the ability to act as a emergency LED high bay on critical moments. SMD LED technology and specialized lenses efficiently redirect the light beam to the useful area of the corridors, providing exceptional lighting comfort.
1) Emergency module operation indicator.
2) Push button to enable the emegency function.
- Industrial LED lighting.
- LED emergency lighting.
- LED lighting industrial buildings.
- LED lighting corridors.
- LED lighting shelves.
- LED lighting open areas.
- LED lighting production halls.
- LED lighting logistics halls.
- High height LED lighting.
- LED lighting manufacturing halls.
- LED lighting warehouses.
- Emergency lighting.
LINEAR HIGH BAY LED WITH EMERGENCY LIGHT
The LEN-Y series emergency LED linear high bay is the ideal choice for those working environments in the that lighting levels are crucial to the proper functioning of the business. In addition to meeting all conventional lighting standards, this emergency LED linear high bay is ready to respond in any emergency.
|Reference||Power (W)||Emergency power||Color temperature||N° Led PCB||Lumens (Im)*||Work temperature||Dimensions AxBxC (mm)||Weight (Kg)|
|LED LINEAR HIGH BAY EMERGENCY LENY0150XXX0101||
0 a 40°C
|LED LINEAR HIGH BAY EMERGENCY LENY0200XXX0101||
0 a 40°C
INTEGRATED EMERGENCY SYSTEM
Integration of driver, emergency control electronics and battery in the same linear high bay simplifies installation and improves energy efficiency. In addition, this compact design ensures better use of space and provides from a great aesthetic appearance to the emergency LED linear high bay LEN-Y series.
The Emergency LED Linear high bay is perfect for ensuring uninterrupted light performance in case of emergency, in addition to being reliable and improving safety in industrial working environments.
OPTICS AVAILABLE FOR THIS EMERGENCY LED LINEAR HIGH BAY
The different polycarbonate lenses of the Emergency LED linear high bay provide a level of protection IK10 of the optical closure. These allow us to effectively direct the light flow to the useful areas of the corridors, facilitating energy savings and optimising the energy used as much as possible.
INDUSTRIAL LIGHTING WITH OUR EMERGENCY LED LINEAR HIGH BAY
En Venalsol Smart Light disponemos de personal cualificado que, mediante un programa especializado aconseja a nuestros clientes con la mejor elección posible, la luminaria, óptica y potencia más adecuada, siempre dependiendo del uso al que vaya destinado y basándonos en los niveles y uniformidad exigidos en la normativa vigente.
No losses by reflectors
Compared to traditional high bay led with COB chip or HID lamp, the linear high bay led saves between 60 and 90% of energy, thanks to its geometry,applied optics and the use of IC systems.This contributes to an intelligent use of energy resources.
A rational use helps to be more competitive.
Save up to 90%
The selection of an adequate optics according to the height and width of the corridors, in combination with the presence detection system, will reduce the energy consumption where it is not necessary..
Detection of presence up to 15 meters high.
They can be controlled remotely: turn off, turn on, dim or increase the lighting using a smart phone. It allows the possibility of creating scenarios (opening, closing, visits, etc) of your trade or industry, or controlling them using a simple remote control.
Smart control IC modes
The light sensor works in combination with the Zigbee control system. If it detects enough ambient light, it attenuates or extinguishes a certain area.
In the combined mode:
If the ambient light varies, the lamps vary the light that they contribute until reaching the set brightness level.
In twilight mode:
If natural light falls below the set value, the lamps light up at the preselected level.
If it is not detected for a while, we can turn it off completely or keep it at a preselected level.
- LED efficiency
- 170lm/W - 5000K ±5%
- Efficiency sys. brigh
- Greater Than 90%
- SOSEN - Dimmable (1-10Vcc
- 100-277 VAC 50-60 Hz
- Power factor
- Greater Than 0.92
- Union temperature (Tj)
- Less than 75°C (Ta equal to 30°C)
- Degree of protection
- Optical protection level
- More than 50000h. (LM70 & 30°C)
- 30x70º / 120º / 90º / 40x120º / 50x90º
- Ni-MH 3000mAh 9.6V
- Battery duration
- 3 Hours (EMERGENCY LED: 8W)
