LED Spotlight Football Fields
PRX series
High power modular LED floodlights
The PRX series football field LED floodlight provides a high light output of 140lm/W, as well as offering an increase in energy savings thanks to its high quality components. We highlight its robust design, as it is manufactured with aluminum, stainless steel screws and watertight connections that offer great durability.
This LED Floodlight football fields offers a 5-year warranty and ensures a light level of 70% since it integrates SMD LED technology, in addition to having different optics that are adapt to the needs of each project.
PRICE OF ▶ LED FLOODLIGHT FOOTBALL FIELS
- LED lighting Football fields.
- LED lighting sports centers.
- LED lighting sporting events.
- LED lighting recreational areas.
- LED lighting for sports courts.
- LED lighting athletics track.
- LED lighting high heights.
- LED lighting high competition.
- LED sports lighting.
- LED lighting in port areas.
- LED lighting fairgrounds and shows.
- LED mining and railway lighting.
- LED lighting airports.
- Outdoor LED lighting warehouses.
- LED lighting for outdoor storage.
- Lighting LED parkings.
LED FLOODLIGHT FOR SPORTS EVENTS
BUY ▶ LED FLOODLIGHT
NEEDS A LIGHT STUDY ▶ REQUEST WITHOUT OBLIGATION
Specifically designed to offer the best light comfort in large spaces: sports centers, fairgrounds, port areas, railways, mining sites, airports, etc.
Its modular assembly allows it to adapt to the demands of each project
High light efficiency (140lm/W)
IP66 rating with 5 years warranty
LED Lumileds + Driver Mean Well 0-10V dimmable
| Reference | Power (W) | Color temperature | PCB LED number | Luminous flux (lm)* | Working temperature | Dimension AxBxC(mm) | Weight (Kg) |
|---|---|---|---|---|---|---|---|
| LED Spotlight PRXT0250XXX2001 |
250W | 30-40-50 | 336 | 35000 | -30 to 45ºC | 430x406x137 | 10±0.3 |
| LED Spotlight PRXT0300XXX2001 |
300W | 30-40-50 | 336 | 40500 | -30 to 45ºC | 430x406x137 | 10±0.3 |
| LED Spotlight PRXT0500XXX2001 |
500W | 30-40-50 | 672 | 70000 | -30 to 45ºC | 683x526x213 | 22±0.3 |
| LED Spotlight PRXT0600XXX2001 |
600W | 30-40-50 | 672 | 81000 | -30 to 45ºC | 683x526x213 | 22±0.3 |
| LED Spotlight PRXT0750XXX2001 |
750W | 30-40-50 | 1008 | 105000 | -30 to 45ºC | 920x526x216 | 29±0.3 |
| LED Spotlight PRXT0900XXX2001 |
900W | 30-40-50 | 1008 | 121500 | -30 to 45ºC | 920x526x216 | 29±0.3 |
| LED Spotlight PRXT1000XXX2001 |
1000W | 30-40-50 | 1344 | 140000 | -30 to 45ºC | 1157x526x216 | 36±0.3 |
| LED Spotlight PRXT1200XXX2001 |
1200W | 30-40-50 | 1344 | 162000 | -30 to 45ºC | 1157x526x216 | 36±0.3 |
*Actual efficiency of the light system according to optics ( CCT=5000K 135-140 lm/W)± 5% depending on the color temperature.
LED FLOODLIGHT WITH
SAFETY AND CONTROL
The PRX series LED floodlight football fields includes an electrically isolated Mean Well driver that protects the components from possible disturbances existing in the electrical network. In addition, this driver has a 10kV overvoltage protection.
The driver allows you to regulate the light intensity of the LED floodlight using the 0-10Vdc control cable hose.
MATERIALS AND REFRIGERATION
This LED floodlight football fields is made entirely of high-quality aluminum alloy, stainless steel screws, watertight connections and has anti-condensation valves. The whole envelope is finished with multiple extrusion profiles that guarantee a high heat dissipation.
The combination of chassis and external driver allows the LED floodlight football fields to obtain efficient passive cooling and offer five years of operation and maintenance of the light level (LM70).
LED FLOODLIGHT FOR HIGH
PERFORMANCE FOOTBALL FIELDS
The PRX series LED floodlight football fields uses for the assembly process of its LED board (PCB) the SMD LED technology, one of the most advanced in the market. This allows us to obtain a high level of performance (140lm/W), maximizing the quantity and quality of the resulting light and thus obtaining a great energy saving in our LED floodlight football fields.
DOUBLE PROTECTION
The LED football field floodlight incorporates a polycarbonate optical lens that gives it IK10 protection. Additionally, you can add a glass cover for additional protection.
The different optics available in the LED football field floodlight allow great adaptability to be installed in sports venues, port areas, exhibition grounds, airports, parking lots, mines, etc.
OPTICS AVAILABLE FOR THIS LED FLOODLIGHT FOR SPORTS EVENTS

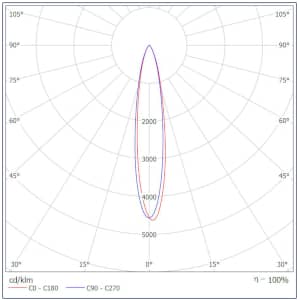

OPTICS 15º
OPTICS 30º
OPTICS 45º
OPTICS 60º
EASY TO INSTALLATION AND ASSEMBLY
ADJUSTABLE ORIENTATION BY
MODULES OR COMPLETE BLOCK
All modules of our LED football field floodlight can be easily and individually tilted ±30° according to the lighting requirements of the installation. The set of modules can also be tilted up to 240º.
SIMPLIFIED INSTALLATION
WITH LASER ORIENTATION
The LED football field floodlight has a laser* to facilitate its installation; It allows us to more comfortably orient and direct the LED football field floodlight towards the desired position.
* Optional accessory not included
VISOR FOR LED FLOODLIGHT
FOOTBALL FIELD
Another accessory available for the LED football field floodlight is a visor*, which helps us minimize light interference in surrounding areas. The current regulations indicate the maximum permitted level of glare (UGR) depending on the type of activity for which the LED football field floodlight is intended.
* Optional accessory not included
PERFECT LIGHTING FOR FOOTBALL FIELDS
In Venalsol Smart light through a specialized program, we create a 3D simulation of the area to be illuminated by the customer, so advise as best as possible on the most optimal choice of luminaire, power and optics, all based on the levels and uniformity that marks the regulations, depending on the use to which it is intended.
NEEDS A LIGHT STUDY ▶ REQUEST WITHOUT OBLIGATION
Venalsol® - The best SMD product.
Thanks to this technology, our designers have excluded the use of COB LEDs, applying an excellent distribution of the SMD chip. The innovation that provides the most effective height result.
The most reliable design:
Its long life without maintenance is the added value of our LED chip, thanks to unbeatable temperature control. The use of high quality components makes it an excellent solution for extreme conditions.
Amortization - Your investment.
The investment in the purchase of a quality LED solution can be recovered in a few months. Depending on the usage patterns, electricity prices and chosen smart control. These savings will continue for many years once the investment is amortized, with a product guarantee that will help you to be more competitive due to this energy saving in your costs.
Our technicians will study your needs, and offer you the solution that provides greater comfort and savings to your requirements.
Selection - Product and quality control.
The selection of the ideal product is essential to obtain the best financial result, and excellent lighting comfort in the medium and long term.
Own laboratory of electrical security: Tests like the EN55015 and EN61004-5, additional quality control in the supply of the electronic components implemented next to the LED chip.
Own photometry laboratory: Goniofotometer and integrating sphere with temperature control. A fast implementation of optics and control of durability in extreme conditions. Do not deal directly with the problem, ask for a photometric simulation for your installation. We will send you a detailed study, uniformity and lux levels. Technical sheets and IES upon request.
Options IC - Intelligent control.
The rationalization and intelligent use of energy will provide up to 90% energy savings. The options of DALI, 1-10V, compensation for natural light level provided, or presence control, make it an intelligent system.
Superior thermal management - Guarantee of useful life.
Its thermodynamic and PCB design gives it great uniformity and lower temperature increase, providing a greater margin of safety compared to the junction temperature of the LED chip.
09
Data sheet
- LED
- LUMILEDS
- LED efficiency
- 180lm/W - 5000K ±5%
- Efficiency sys. brigh
- Greater than 90%
- DRIVER
- MEAN WELL - Dimmable (0-10Vcc)
- Voltage
- 200-240VAC 50-60 Hz
- Power factor
- 0.95
- CRI
- 70
- Degree of protection
- IP66
- Optical protection level
- IK8 (glass) / IK10 (polycarbonate)
- Lifetime
- More than 50000h. (LM70 & 30°C)
- Optics
- 30º / 15º / 60º / 45º
